Model 1626, 1627, 1828, 1829, 2030, 2032, 2038
All Manways, Pressure Vessel Hatches, Closure Assemblies, Access Hatches meet ASME Code

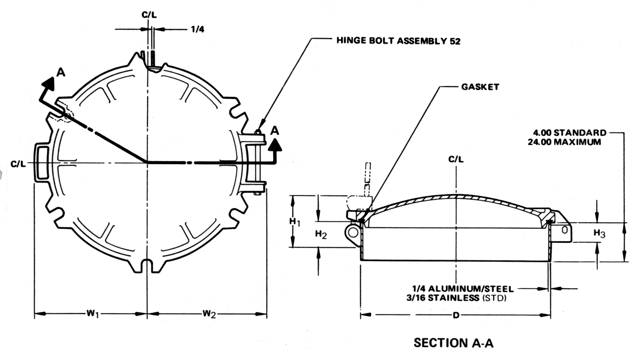

Click image for specifications |
||||
| Hardware Assemblies Available |  |
 |
 |
 |
 |
| Basic Cover No. |
Out- |
Cover
Material |
|||||||||||||
 |
 |
 |
 |
 |
 |
H1 |
H2 | H3 | W1 | W2 | |||||
| B | E | G | J | ||||||||||||
| 1626 | 16.5 | X | 5.75 | 7 | 5.75 | 5.75 | 2.75 | 2.25 | 10 | 10.5 | |||||
| 1627 | 16.5 | X | X | X | X | X | 5.75 | 7 | 5.75 | 5.75 | 2.75 | 2.25 | 10 | 10.5 | |
| 1828 | 18.5 | X | 5.75 | 7 | 5.75 | 5.75 | 3.0 | 2.25 | 11 | 11.75 | |||||
| 1829 | 18.5 | X | X | X | X | X | 5.75 | 7 | 5.75 | 5.75 | 3.0 | 2.25 | 11 | 11.75 | |
| 2030 | 20 | X | 5.75 | 7 | 5.75 | 5.75 | 3.0 | 2.25 | 12 | 12.5 | |||||
| 2032 | 20 | X | X | X | X | X | 5.75 | 7 | 5.75 | 5.75 | 3.25 | 2.5 | 12 | 12.5 | |
| 2038 | 20 | X | 5.75 | 7 | 5.75 | 5.75 | |||||||||
