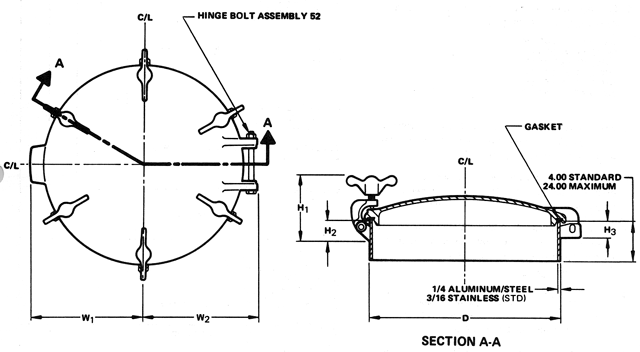

Click image for specifications
Hardware Assemblies Available       c Clamp Hardware
Basic
Cover No.

Out-
side
Dia.
Cover Material
H1
 H2 H3 W1 W2
K
1603 16.5 X           5.25 2.5 2.25 9-5/8 10-5/8
1604 16.5   X X X X X 5.25 2.5 2.25 9-5/8 10-5/8
1805 18.5 X           5.25 2.5 2.25 10-5/8 11-5/8
1807 18.5   X X X X X 5.25 2.5 2.25 10-5/8 11-5/8
2007 18.5 X           5.25 2.5 2.25 11-5/8 12-3/8
2008 20   X X X X X 5.25 2.5 2.25 11-5/8 12-3/8
