| Hardware Assemblies |  |
 |
 |
 |

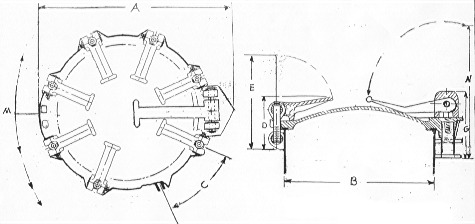

| A | B | C | D | E | F | G |
| 32" | 24.5" | 45° | 7.375" | 12.00" | 1.250" | 12.0" |
| |
||||||
| H | I | J | K | L | M | N |
| .463" | 5.75" | 15.25" | 6.00" | 6.00" | 360° | 22.25" |
